Pure Nickel Wires

  • Pure nickel(NW2200/Ni99.0/Nickel 200/UNS N02200/W.Nr. 2.4060/2.4066 and NW2201/Ni99.0-LC/Nickel 201/UNS N02201/W.Nr. 2.4061/2.4068) is a high-purity metal material (typically ≥99% nickel content) with excellent comprehensive properties and is widely used in multiple industrial fields. Its main features and performance are as follows:
  • • Appearance and texture: Pure nickel is a silvery-white metal with a metallic luster, with a tough texture and good ductility, and can be drawn into filaments or pressed into thin sheets.
  • • Density and melting point: With a density of about 8.9g/cm³ and a melting point of up to 1455°C, it has excellent high-temperature resistance.
  • • Magnetism: It has ferromagnetism at room temperature, and the magnetism will be enhanced at low temperature, and the magnetism will disappear when heated to 358°C.
  • • Corrosion resistance: extremely stable in atmosphere, fresh water and some alkaline solutions, not easy to be corroded; However, in acidic environments, especially with sulfur, corrosion will accelerate.
  • • Electrical and thermal conductivity: Excellent electrical and thermal conductivity, second only to a few metals such as copper and silver, and is often used in conductive components in the field of electronics and electrical applications.
  • • Mechanical properties: Moderate strength and hardness, which can be significantly improved through cold working while maintaining good plasticity.
  • • Catalytic performance: It has a catalytic effect on many chemical reactions, such as hydrogenation and dehydrogenation reactions, and can effectively speed up the reaction rate.
  • • Ease of processing: It can carry out a variety of cold and hot processing processes such as forging, rolling, drawing, and stamping, and can be processed into various complex shape parts. The higher the purity (such as N6 grade), the lower the strength but better corrosion resistance; N4 grade focuses on high strength.
  • • Weldability: Good welding performance and can be welded with itself or other metals through common welding methods (such as arc welding, gas welding, etc.).

Featured Products

加载中...

  • Typical application fields:
  • • Electronic and electrical field: Manufacture battery electrodes (such as nickel-metal hydride batteries), precision resistors, and electronic connectors, using their excellent conductivity to stably transmit current.
  • • Chemical metallurgy: making reactor liners, pipelines, valves, resisting corrosive media such as acid and alkali; As a catalyst carrier, it improves the efficiency of chemical reactions.
  • • Machinery manufacturing: produce wear-resistant parts of steam turbine blades and molds, and cope with complex working conditions with their high strength and heat resistance; It can also be used as a coating material to enhance the wear and corrosion resistance of parts.
  • • Military aviation field: used in the manufacture of aero engine components and radar antennas to maintain stable component performance in high-temperature and high-load environments.
    • nickel 200/201 wire
    Pure nickel wire

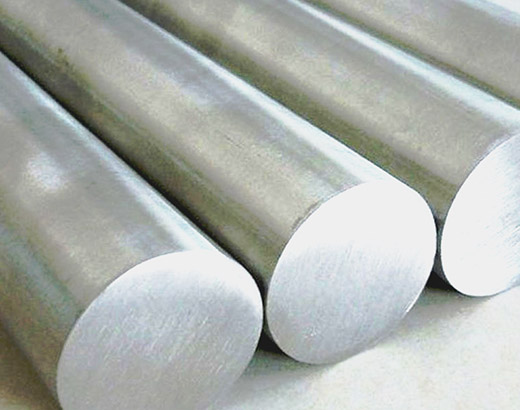

    nickel 200/201 rod

    Chemical Composition:

    (Swipe the screen to view the full table)

    Chemical Composition

    Grade

    		 Ni+Co Cu Fe Mn C Si S Mg P
    ≤
    N4 ≥99.9 0.015 0.04 0.002 0.01 0.03 0.001 0.01 0.001
    N5(Nickel 201) ≥99.0 0.25 0.4 0.35 0.02 0.35 0.01 - -
    N6 ≥99.5 0.1 0.1 0.05 0.1 0.1 0.005 0.1 0.002
    N7(Nickel 200) ≥99.0 0.25 0.4 0.35 0.15 0.35 0.01 - -
    N8 ≥99.0 0.15 0.3 0.2 0.2 0.15 0.015 0.1 -

    According to GB/T26030-2010 and GB/T5235-2021 N7 and N5 are same as Nickel200(UNS N02200/NW2200/W.Nr. 2.4060 & 2.4066) and Nickel201(UNS N02201/NW2201/W.Nr. 2.4061 and 2.4068)

    Mechanical properties of the wires:

    Grade

    Finish status

    Diameter

    (mm)

    Tensile Strength

    Rm/(N/mm2)

    Elongation

    A100 mm/% (≥)

    Grade

    Finish status

    Diameter

    (mm)

    Tensile Strength

    Rm/(N/mm2)

    Elongation

    A100 mm/% (≥)

    N4

    Y

    0.03-0.09

    780-1275

    -

    N6

    N8

    Y

    0.03-0.09

    880-1325

    -

    >0.09-0.50

    735-980

    -

    >0.09-0.50

    830-1080

    -

    >0.50-1.0

    685-880

    -

    >0.50-1.00

    735-980

    -

    >1.0-6.0

    535-835

    -

    >1.00-6.00

    640-885

    -

    >6.0-10.0

    490-785

    -

    >6.00-10.00

    585-835

    -

    M

    0.03-0.20

    ≥370

    15

    M

    0.03-0.20

    ≥420

    15

    >0.20-0.50

    ≥340

    20

    >0.20-0.50

    ≥390

    20

    >0.50-1.0

    ≥310

    20

    >0.50-1.00

    ≥370

    20

    >1.0-10.0

    ≥290

    25

    >1.00-10.00

    ≥340

    25

    N7

    (NW2200)

    Y

    >0.03-3.2

    ≥540

    -

    N5

    (NW2201)

    M

    >0.03-0.45

    ≥340

    20

    >3.2-10.0

    ≥460

    -

    >0.45-10.0

    ≥340

    25

    M

    >0.03-0.45

    ≥380

    20

    >0.45-10.0

    ≥380

    25
    Mechanical properties of bars:
    Grade Finish Status Diameter (mm) Tensile Strength Rm/(N/mm2) Elongation A/% (≥)
    N4、N5、N6、N7、N8 Y 3-20 ≥590 5
    >20-30 ≥540 6
    >30-65 ≥510 9
    M 3-30 ≥380 34
    >30-65 ≥345 34
    R 32-60 ≥345 25
    >60-254 ≥345 20

    We provide the Pure Nickel products in various shapes like the wires, strips and rods. The finish status includes Y(hard), Y2(semi-hard), M(soft) and R(hot processing) finish(according to GB/T21653-2008 and GB/T4435-2010). We can also provide the products upon your request.

    ,
